Model 1094 Plug-In or Panel Mount

January 18, 2017 Kanson Electronics

Multifunction 1094 features a large, easy to read, LCD display with programmable time ranges from 0.001 seconds to 9999 hours in 7 programmable timing functions. Two power supply options are available, a wide range of 24 to 240 VAC/DC and a 12VDC only version. A battery back-up maintains memory for up to 7 years. The output is an SPDT relay…

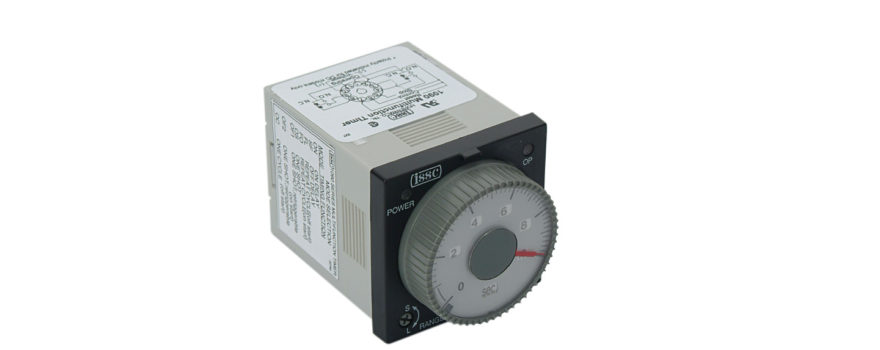

Model 1090 DIN-Pin Panel Mount

January 18, 2017 Kanson Electronics

Programmable (ON or OFF Delay Repeat cycle OFF/ON Start Pulse one-shot one-shot OFF/ON One shot ON/OFF one cycle maintained interval) The Kanson 1090 timer offers 8 programmable timing functions, an auto-calibrating dial and LED indicators for Power and Contact status. CSA File No. LR92815

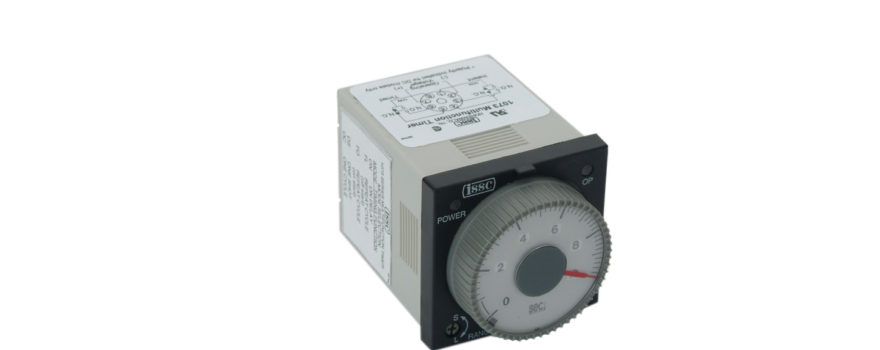

Model 1073 Plug-In or Panel Mount

January 18, 2017 Kanson Electronics

On Delay or fully programmable( Repeat cycle on OFF or ON One shot or One Cycle maintained interval) The 1073 Timer includes a choice of on-delay only or 5 programmable functions, an auto-calibrating dial and an on-delay the only version with DPDT timed output. CSA File No. LR92815

Model 2210 Surface Mount #8 or #10 screw

January 16, 2017 Kanson Electronics

On Delay The 2210 is designed for use as a maintenance reminder or lockout, it starts timing upon application of input power and retains count during removal of power. Input power frequency is used for an accurate time base. A six position dip switch selects the desired time delay. Switch settings can only be changed when output is on. A…

Model 2112 Surface Mount #8 or #10 screw

January 16, 2017 Kanson Electronics

On Delay The 2112 features simple two-wire installation. The compact encapsulated timer is adjustable from 0.2 seconds to 1000 minutes in six ranges. Two power supply ranges cover operating voltages from 24 to 240 VAC/DC with a reliable, 1 Amp solid state output.

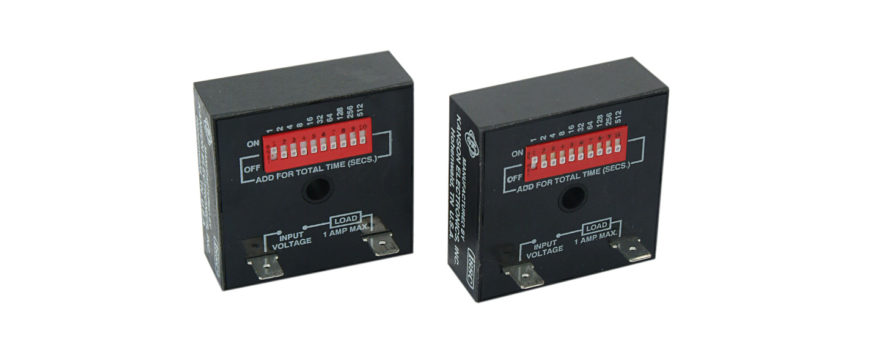

Model 2110 Block Mount

January 16, 2017 Kanson Electronics

On Delay The Kanson 2110 timer is a solid state, simple two-wire installation and compact encapsulated timer with a programmable switch. Two power supply ranges cover operating voltages from 24 to 240 VAC/DC with a reliable 1 Amp solid state output.

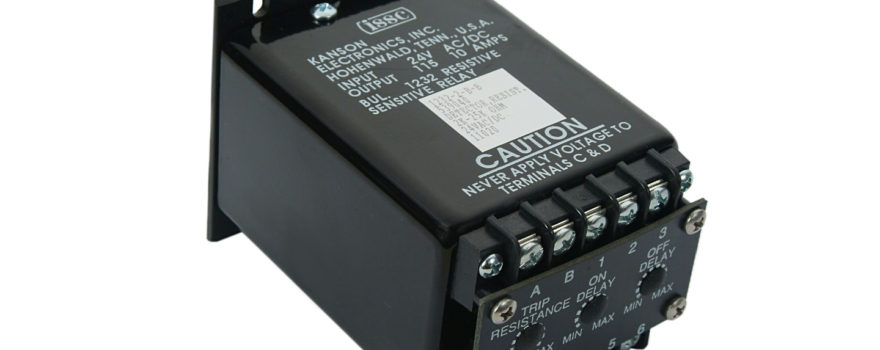

Model 1232 Base Mount

January 16, 2017 Kanson Electronics

On delay - Off delay (independently adjustable) The 1232 delay timer is recommended for situations where initial contact may be poor or the item to be detected may bounce against the sensing probes. The output operates when sensing probes come in contact with a material which provides a resistance value lower than the set resistance and after set on-delay.

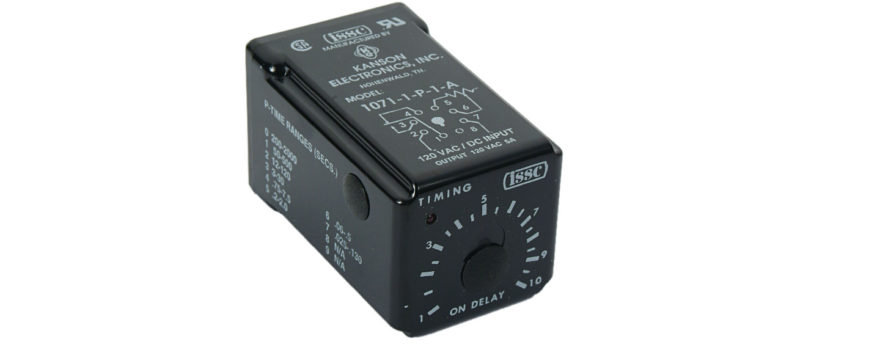

Model 1071 Plug-In

January 16, 2017 Kanson Electronics

On Delay Multi-Range unit is programmable for 8 different time ranges. The 1071 reduces inventory requirements by offering the time range capacity of eight separate timers in one unit. Input Power Actuates timing sequence, eliminating the need for a separate control circuit. Removing power automatically resets timing sequence. Input Is Compatible with both standard mechanical switches and solid state proximity…

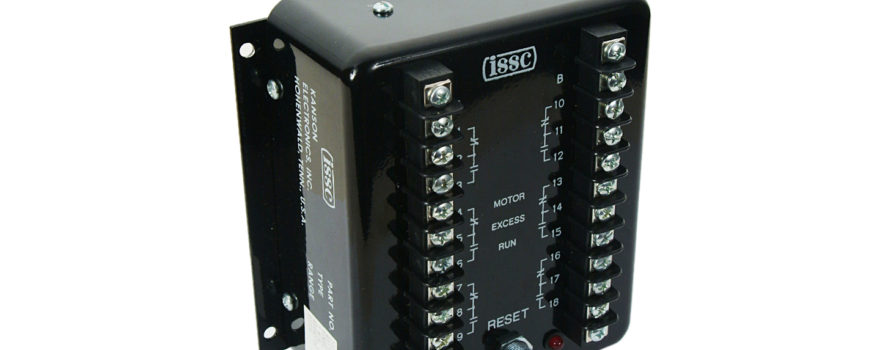

Model 1025 Base Mount

January 16, 2017 Kanson Electronics

On Delay The 1025 is a special purpose on delay timer for electric motor over-run protection featuring 6 normally open and 6 normally closed sets of contacts, equipped with transient protection and housed in a metal enclosure for maximum noise immunity. The LED displays timed out condition and has a reset button.
