Model 1017-SP7 Base Mount
- On Delay
The 1017-SP7 is a intermittent duty delay timer for electric utility applications capable of high voltage DC switching.
Product SheetInput
Voltage: 24V AC/DC, 48V AC/DC, 120VAC/125VDC, 240VAC/250VDCFrequency: 50/60 Hz or DC
Tolerance (voltage): ±15% of nominal, ± 10% for 24V
Power Consumption: 16 W Maximum
Transient Protection: MOV
Output
Type: Electromechanical relayRating: 3A @150 VDC Max, 10A @ 240 VAC 80% PF Max
Timing
Timing Function: On DelayRepeat Accuracy: ± 1% of setting
Reset Time: 50 msec minimum
Time Range: 1.5 to 120 cycles in 4 ranges or 0.5 to 300 sec in 4 ranges
Range Tolerance: ≤ 10% at max., ≤ 0% at min.
Physical
Operating Temp: 40° to 65° C (40° to 150° F)Timing Variation vs. Temp: ± 5% maximum

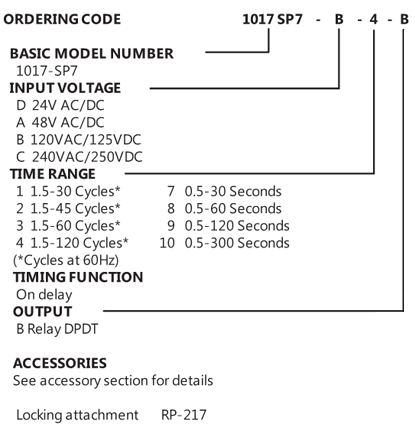

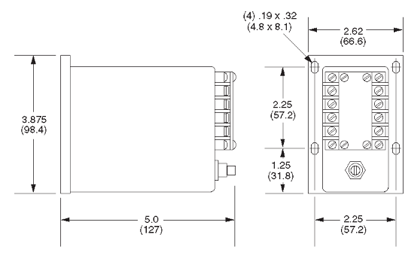

Mounting: Base Mount

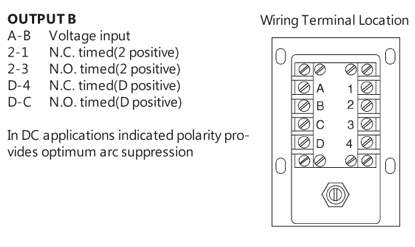

Termination: Terminal blocks on face of timer
Housing: Metal
