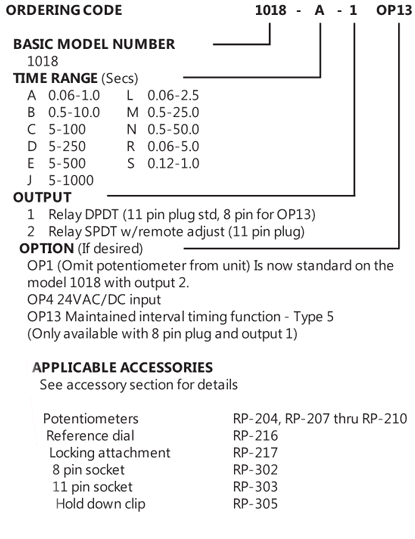

Model 1018 Plug-In

Input

Voltage: 120VAC/DC, 24VAC/DC
Frequency: 50/60 Hz or DC
Tolerance (voltage): ± 10% of nominal
Power Consumption: 3 VA maximum
Transient Protection: MOV

Output

Type: Electromechanical relay
Rating: 10A @ 240VAC maximum

Timing

Timing Function: Off delay, Pulsed interval, Maintained interval
Repeat Accuracy: ± 1% of setting or 8 msec, whichever is greater
Reset Time: 50 msec minimum- Types 2 & 4, 100 msec minimum - Type 5
Indication: LED - ON when timing
Timing Ramp: 0.06 sec minimum time - 1MΩ/sec, 0.5 sec minimum time - 100kΩ/sec, 5 sec minimum time - 10kΩ/sec
Time Range: 0.06 to 1000 secs in 10 ranges
Range Tolerance: ≤ 30% at maximum, ≤ 0% at minimum
Control: Isolated contact closure

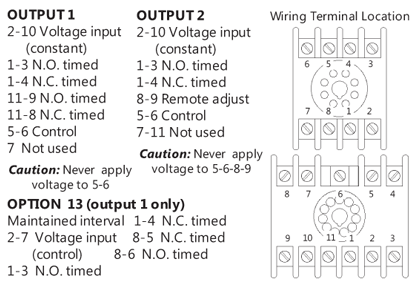

Control Terminals: 5-6 (Types 2 and 4) 2-7(for option 13 - Type 5)

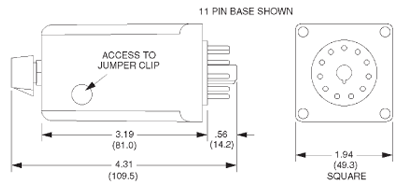

Voltage Present at Control Terminals: 70VDC (120VAC/DC - Types 2 and 4), 30VDC (24VAC - Types 2 and 4), 24VDC (24VDC - Types 2 and 4) Same as input voltage (Type 5) Shipped as an off delay. Remove jumper clip (see dimensions) to convert to pulsed interval

Physical

Operating Temp: 0° to 50° C (32° to 120° F)
Timing Variation vs. Temp: Greater of ≤ 5% maximum or 8 msec, whichever is greater (up to 500 secs)
Mounting: Plug-In
Termination: 8 or 11 pin socket
Housing: Plastic
