Model 1019 Plug-In
- On delay
The 1019 plug-in unit saves space and installation time, with Input Power actuates timing sequence, eliminating the need for a separate control circuit.

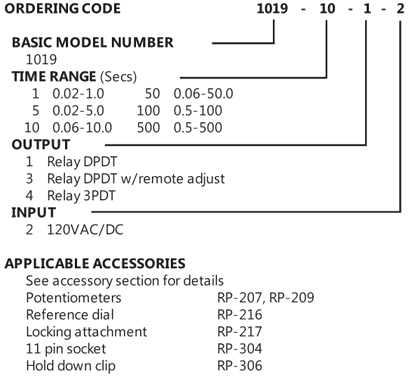

Product Sheet
Input
Voltage: 120VAC/DCFrequency: 50/60 Hz or DC
Tolerance (voltage): ± 10% of nominal
Power Consumption: 3 VA maximum
Transient Protection: MOV
Output
Type: Electromechanical relayRating: 10A @ 240VAC maximum
Timing
Timing Function: On delayRepeat Accuracy: ± 1% of setting
Reset Time: 40 msec minimum
Timing Ramp: 0.02 sec min time - 1MΩ/sec, 0.06 sec min time - 100kΩ/sec, 0.5 sec min time - 10kΩ/sec
Time Range: 0.02 to 500 secs in 6 ranges
Range Tolerance: ≤ 30% at maximum, ≤ 0% at minimum
Control: Application of power initiates timing cycle
Control Terminals: A-B
Voltage Present at Control Terminals: Same as input voltage

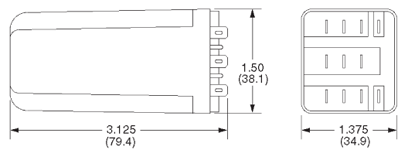

Physical
Operating Temp: 0° to 50° C (32° to 120° F)Timing Variation vs. Temp: ± 5% maximum
Mounting: Plug-In

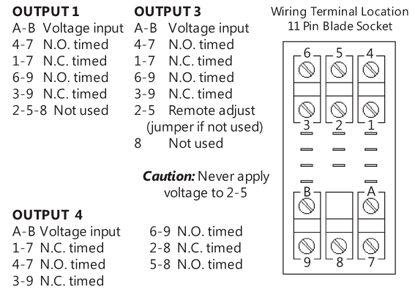

Termination: 11 pin blade socket
Housing: Plastic
