Model 1020 Base Mount
- On delay
The 1020 is a special purpose on delay timer for electric motor over-run protection. It is equipped with transient protection and housed in a metal enclosure for maximum noise immunity. The LED shows timed out condition, and has a reset button.

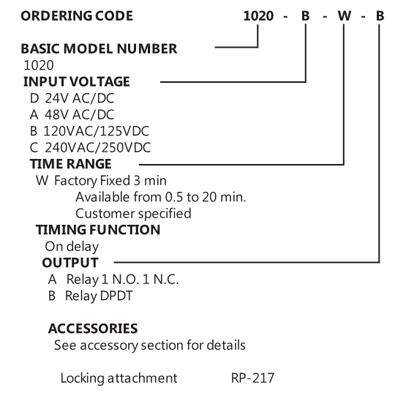

Product SheetInput
Voltage: 24V AC/DC, 48V AC/DC, 120VAC/125VDC, 240VAC/250VDCFrequency: 50/60 Hz or DC
Tolerance (voltage): ±15% of nominal, ± 10% for 24V
Power Consumption: 16 W maximum
Transient Protection: MOV
Output
Type: Electromechanical relayRating: 3A @ 150 VDC maximum, 10A @ 240 VAC 80% PF maximum
Timing
Timing Function: On delayRepeat Accuracy: ± 1% of setting
Reset Time: 50 msec minimum
Time Range: 0.5 to 20 min
Range Tolerance: ≤ 10% at max., ≤ 0% at min.
Voltage Present at Control Terminals: 1500V terminals to case, 1200V between open contacts
Physical
Operating Temp: 40° to 650° C (40° to 150° F)Timing Variation vs. Temp: ± 5% maximum

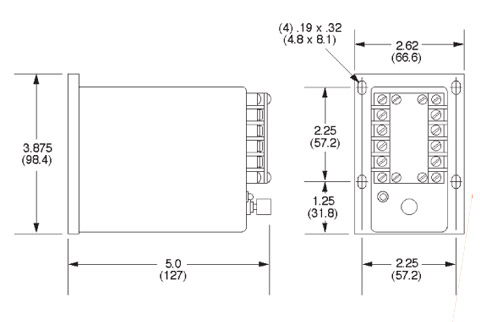

Mounting: Base Mount

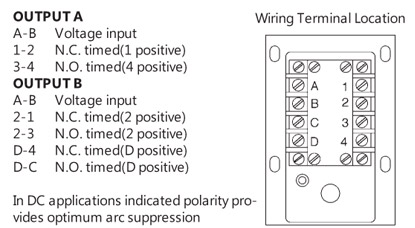

Termination: Terminal blocks on face of timer
Housing: Metal
