Model 1032 Plug-In
- On delay
- Off delay
- Pulsed interval
- Maintained interval
The 1032 is easy to install or replace, keeping downtime to a minimum. The 12 pin base allows both DPDT output and remote adjust connections
Product SheetInput
Voltage: 120VAC, 24VACFrequency: 50/60 Hz
Tolerance (voltage): ± 15% of nominal
Power Consumption: 10 VA maximum
Transient Protection: Isolation transformer(120/240VAC Only)
Output
Type: Electromechanical relayRating: 10A - 1/6HP at 120VAC, 1/3HP at 240VAC
Mechanical Life: 10,000,000 operations
Electrical Life: 300,000 operations
Timing
Timing Function: On delay, Off delay, Pulsed interval, Maintained intervalRepeat Accuracy: ± 1% of setting
Reset Time: 50 msec minimum
Indication: LED - ON when output energized
Timing Ramp: 06sec minimum time - 100K ohm/sec.5sec minimum time - 10K ohm/sec
Time Range: 0.06 to 500 secs in 11 ranges
Range Tolerance: ≤ 10% at max., ≤ 0% at min.
Control: Isolated contact closure
Control Terminals: 5/6/2014
Voltage Present at Control Terminals: 24VDC minimum, 40VDC maximum

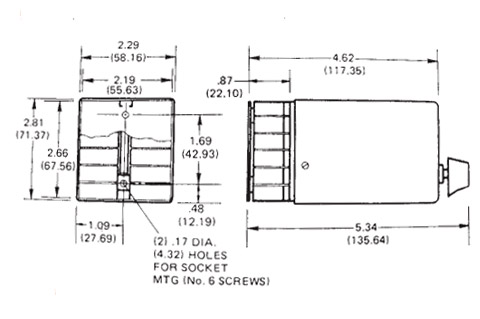

Physical
Operating Temp: 0° to 50° C (32° to 120° F)Timing Variation vs. Temp: ± 5% maximum
Mounting: Plug-in

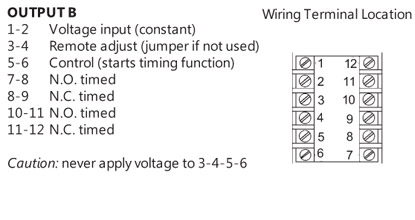

Termination: 12 pin socket
Housing: Metal
