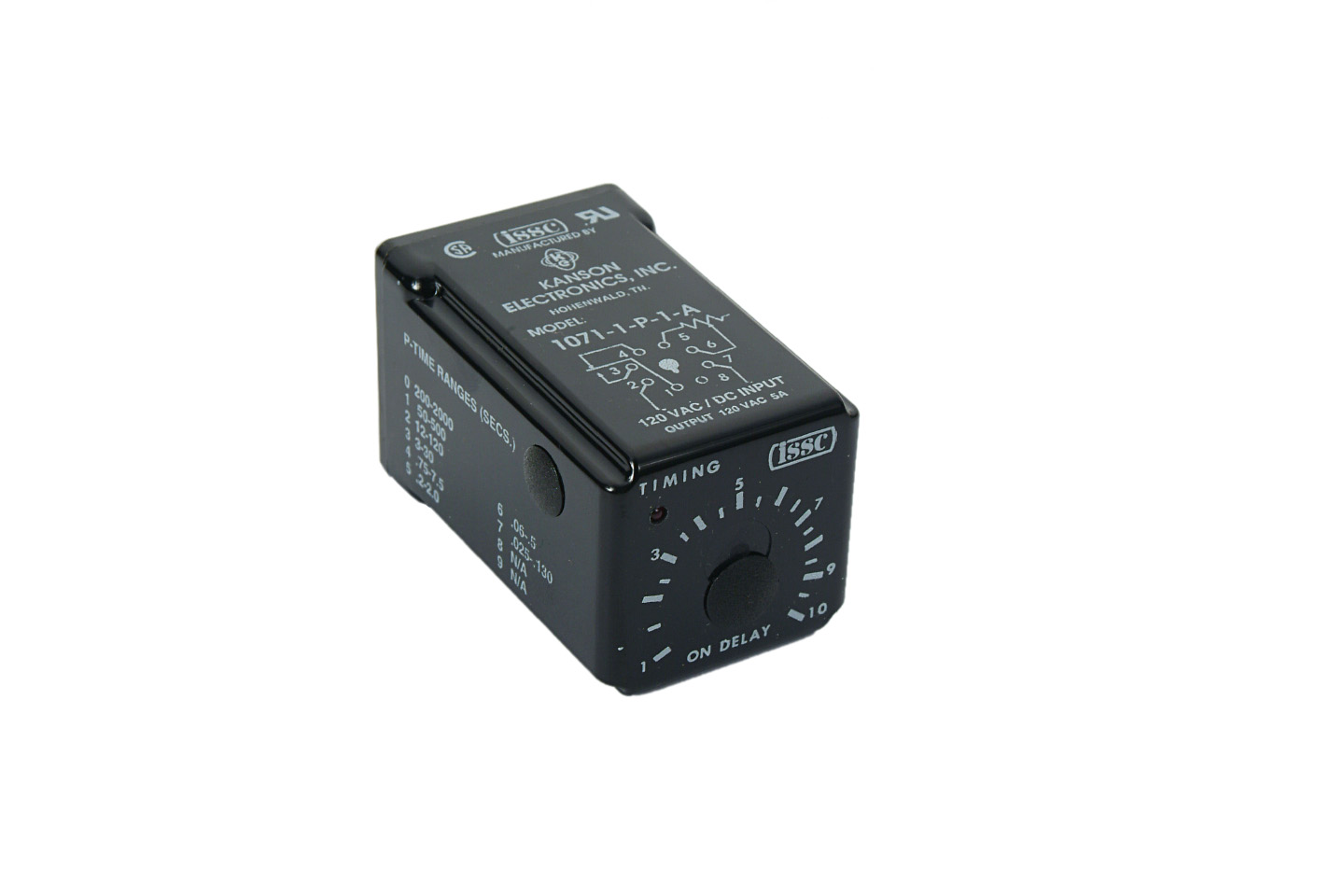

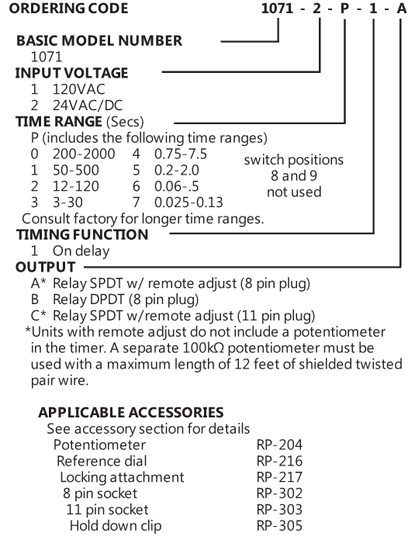

Model 1071 Plug-In
- On Delay
Multi-Range unit is programmable for 8 different time ranges. The 1071 reduces inventory requirements by offering the time range capacity of eight separate timers in one unit. Input Power Actuates timing sequence, eliminating the need for a separate control circuit. Removing power automatically resets timing sequence. Input Is Compatible with both standard mechanical switches and solid state proximity sensors.
Product SheetInput
Voltage: 120VAC/DC, 24VAC/DCFrequency: 50/60 Hz or DC
Tolerance (voltage): ± 15% of nominal
Power Consumption: 4 VA Maximum
Transient Protection: MOV
Output
Type: Electromechanical relayRating: 5 A @ 240VAC maximum
Timing
Timing Function: On DelayRepeat Accuracy: ± 0.5% of setting or 0.004 secs, whichever is greater
Reset Time: 40 msec minimum
Indication: LED - ON when timing
Time Range: 8 per unit
Range Tolerance: ± 10% typical
Control: Power actuated or AC proximity sensor

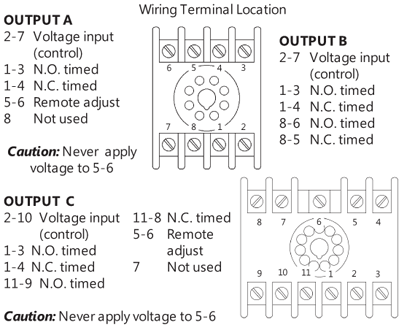

Control Terminals: 2-7 (8 pin unit) 2-10 (11 pin unit)
Voltage Present at Control Terminals: Same as input voltage
Physical
Operating Temp: 20° to 70° C (4° to 158° F)Timing Variation vs. Temp: ± 5% maximum

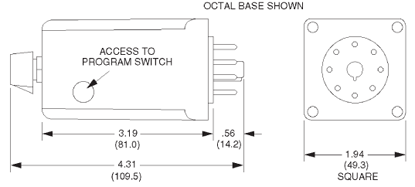

Mounting: Plug-In
Termination: 8 or 11 pin socket
Housing: Plastic
