Model 1081 Plug-In or Panel Mount
- True OFF delay
The Kanson 1081 delay timer is a true off delay, with an auto-calibrating dial, wide range of operating voltage options and an LED power indicator. Removal of input power actuates timing sequence eliminating the need for a separate control circuit. Two timing range options provide operation from 0.04 seconds to 10 minutes. Auto-calibrating dial provides a direct reading of time setting in every range. A wide range of operating voltage options support operation from 12VDC to 240VAC, an LED indicates power is applied.
CSA File No. LR92815
Input
Voltage: 100-120VAC, 200-240VAC/DC,24VAC/DC, 12VDCFrequency: 50/60 Hz (AC models)
Tolerance (voltage): -15% to +10% of nominal
Power Consumption: 5VA(AC Models), 2W (DC Models)
Transient Protection: MOV
Output
Type: Electromechanical relayRating: 3 A @ 240VAC maximum (resistive)
Mechanical Life: 10,000,000 operations
Electrical Life: 100,000 operations minimum (at full rated load)
Timing
Timing Function: True OFF delayRepeat Accuracy: ± 0.3% of setting
Reset Time: 100 msec at maximum time setting
Time Range: 0.04 secs to 10 secs or 0.04 min to 10 min
Physical
Operating Temp: -10° to 50° C (14° to 122° F)Timing Variation vs. Temp: ± 2% maximum

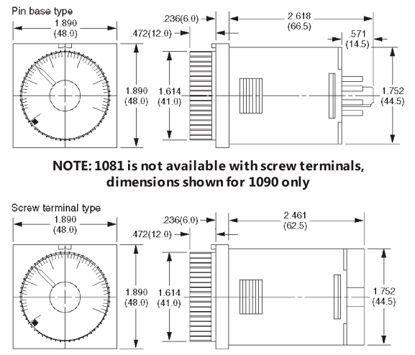

Mounting: Plug-In or Panel mount

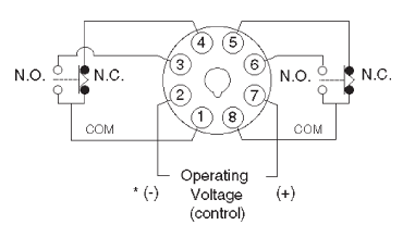

Termination: 8 pin socket
Housing: Polycarbonate
