Model 1096 Plug-In or Panel Mount
- Multifunction
The 1096 features an LCD display with programmable time ranges with on/off delay or repeat cycle timing functions. Two power supply options are available, a wide range of 24 to 240 VAC/DC and a 12VDC only version. A battery back-up maintains memory for up to 7 years. The output is an SPDT relay or open collector transistor.
CSA File No. LR92815
Input
Voltage: 24-240VAC/DC or 12VDCFrequency: 50/60 Hz or DC
Power Consumption: 2.5VA (AC Models), 2.5W (DC Models)
Transient Protection: MOV
Output
Type: Electromechanical relay or transistorRating: Relay - 5 A @ 250VAC maximum (resistive), transistor - 100mA 30VDC Max
Mechanical Life: 10,000,000 operations (Relay only)
Electrical Life: Relay - 100,000 operations minimum (at full rated load) Transistor - 10,000,000 operations minimum
Timing
Timing Function: MultifunctionRepeat Accuracy: ± 0.005% of setting
Reset Time: 20 ms
Time Range: 0.01 secs to 9,999 hours
Physical
Operating Temp: -10° to 50° C (14° to 122° F)Timing Variation vs. Temp: ± .005%

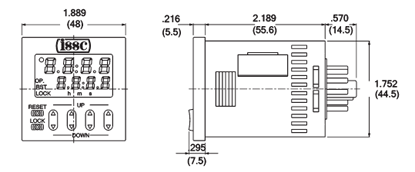

Mounting: Plug-In or Panel mount

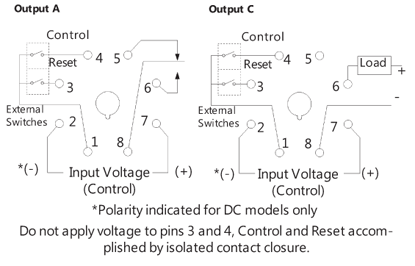

Termination: 8 pin socket
Housing: Polycarbonate
