Model 1234 Base Mount

Voltage 120VAC, 24VAC/DC

Product Description

Model 1234 Base Mount

The 1234 is a window type detector and can be used where fail-safe operation is required. Output is operated when sensing probes come in contact with a material which provides a resistance value between the upper and lower set resistances.Product Sheet

Voltage: 120VAC, 24VAC/DC
Frequency: 50/60 Hz
Tolerance (voltage): ± 10% of nominal
Power Consumption: 10 VA maximum
Transient Protection: MOV

Output

Type: Electromechanical Relay
Rating: 10A @ 240VAC maximum

Physical

Operating Temp: 0° to 70° C (32° to 158° F)

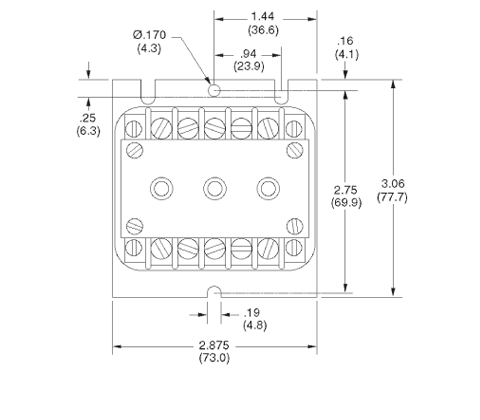

Mounting: Base Mount

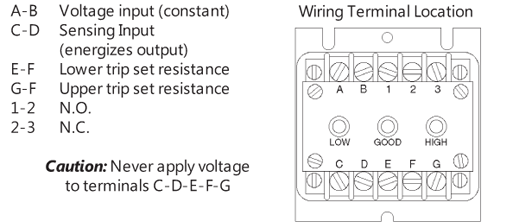

Termination: Terminal blocks on face of timer
Housing: Metal
