Model 1250 – AC limit style
Voltage: 20 to 250 VAC/DC
Timing Function: 12.7mm (0.5 in)
Product Description
The 1250 is a low cost limit style proximity switch using the same proven detection circuitry as our 1248A. Featuring a 20-250 VAC/DC universal input voltage and a simple two-wire connection. It is available with end, left or right sensing. Other options are a normally open or normally closed output and either an internal terminal block or a factory installed connector.
Specifications
Input
Voltage: 20 to 250 VAC/DC
Frequency: 50/60 Hz or DC
Transient Protection: MOV
Leakage: ≤ 2mA
Output
Max Load Current: 500 mA (continuous)
Output Voltage: ? 9 Volts (with resistive load max. load current)
Max Inrush Current: 7 A
Min Load Current: 5 mA
Physical
Operating Temp: -25° to 70° C (-13° to 158° F)
Termination: Internal terminal block or external 3-Pin mini-style connector
Housing: Fire-retardant ABS/polycarbonate blend
Environmental Rating: NEMA 1,3,4,6,12,13,IP67
Sensing
Sensing Distance: 12.7mm (0.5 in)
Target Size: 40mm x 40mm mild steel
Switching Freq: 166 Hz maximum

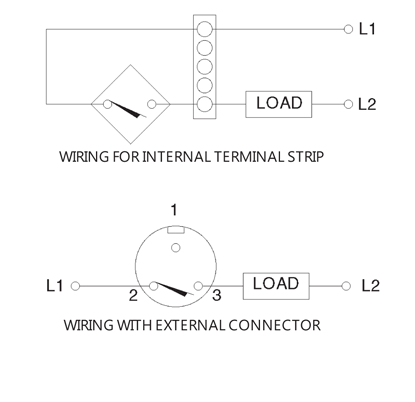

Wiring

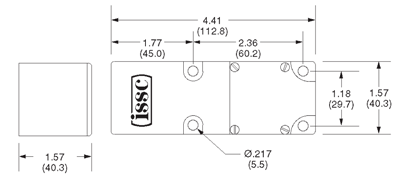

Dimensions

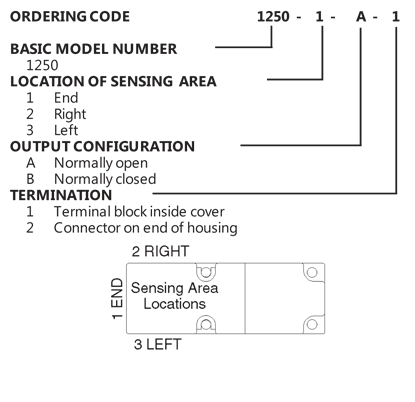

Ordering Data
