Model 2110 Block Mount
- On Delay

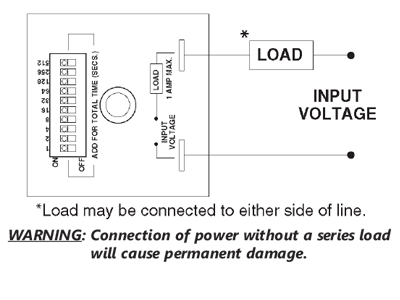

The Kanson 2110 timer is a solid state, simple two-wire installation and compact encapsulated timer with a programmable switch. Two power supply ranges cover operating voltages from 24 to 240 VAC/DC with a reliable 1 Amp solid state output.
Product SheetInput
Voltage: 24 to 140 VAC/DC or 100 to 240 VAC/DCFrequency: 50/60 Hz or DC
Tolerance (voltage): ± 10% of nominal
Power Consumption: 1 VA Maximum
Transient Protection: Protected
Output
Type: Solid State N.O.Rating: 1A @ 240AC/DC max (10A 1 cycle surge)
Timing
Timing Function: On DelayRepeat Accuracy: ≤ 0.5%
Reset Time: ≤ 50 msec
Time Range: 0.1 to 10230 seconds in 3 ranges
Range Tolerance: ± 5%
Control: Power applied to input initiates timing cycle
Physical
Operating Temp: -40° to +80° C (-40° to +175° F)Timing Variation vs. Temp: ± 5% maximum

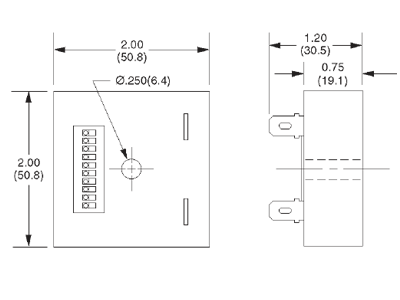

Mounting: Block Mount
Termination: 0.250 inch male quick connect terminals
Housing: Plastic
