Model 2112 Surface Mount #8 or #10 screw
- On Delay

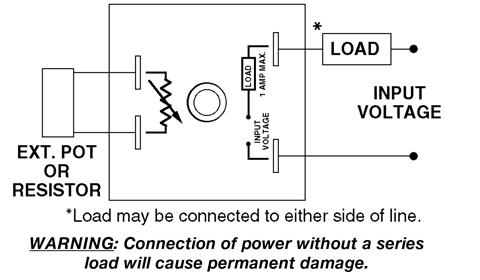

The 2112 features simple two-wire installation. The compact encapsulated timer is adjustable from 0.2 seconds to 1000 minutes in six ranges. Two power supply ranges cover operating voltages from 24 to 240 VAC/DC with a reliable, 1 Amp solid state output.
Product SheetInput
Voltage: 24 to 140 VAC/DC or 100 to 240 VAC/DCFrequency: 50/60 Hz or DC
Tolerance (voltage): ± 10% of nominal
Power Consumption: ± 10% of nominal
Transient Protection: Protected
Output
Type: Solid State N.O.Rating: 1A @ 240VAC/DC max. (8A 1 cycle surge)
Voltage Drop:: 2.5 volts typical at 1A
Timing
Timing Function: On DelayRepeat Accuracy: ± 0.5%
Reset Time: ≤ 50 msec

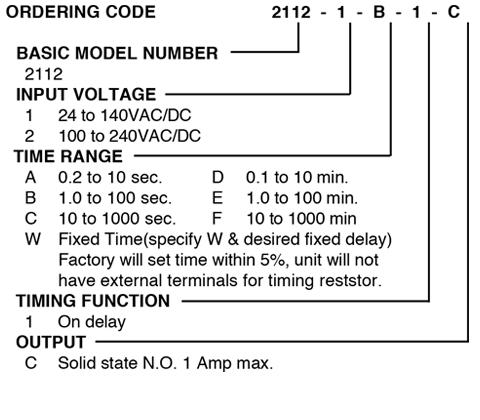

Time Range: 0.2 seconds to 1000 minutes in 6 ranges
Range Tolerance: ± 5%
Control: Power applied to input initiates timing cycle
Physical
Operating Temp: -40° to 80° C (-40° to 175° F)Timing Variation vs. Temp: ± 5% maximum

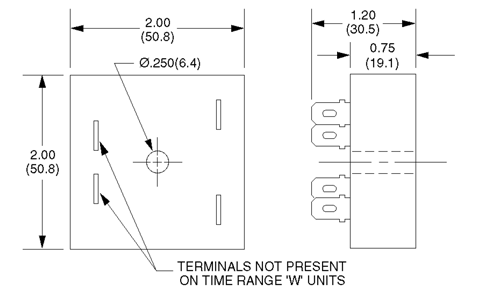

Mounting: Surface with #8 or #10 screw
Termination: 0.250 inch male quick connect terminals
Housing: Plastic
